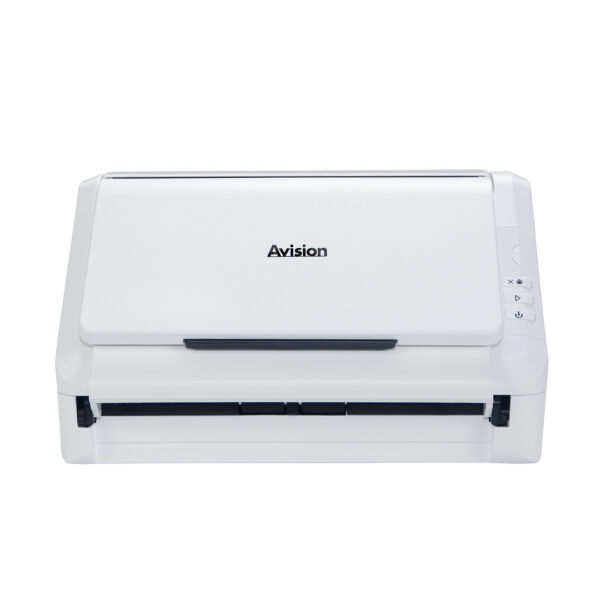

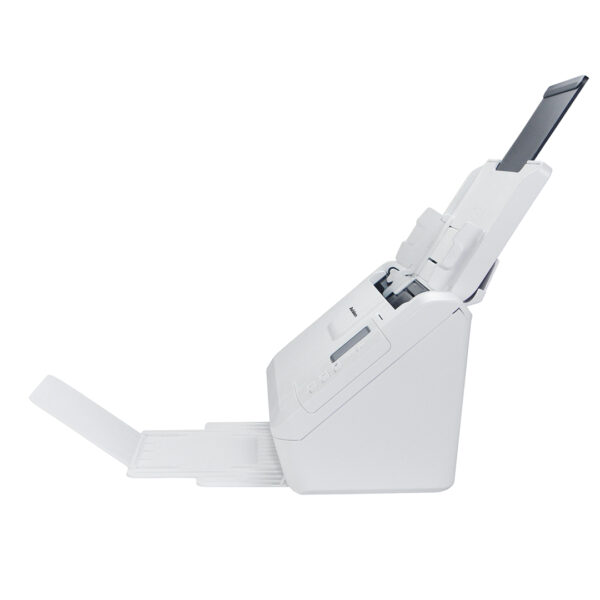

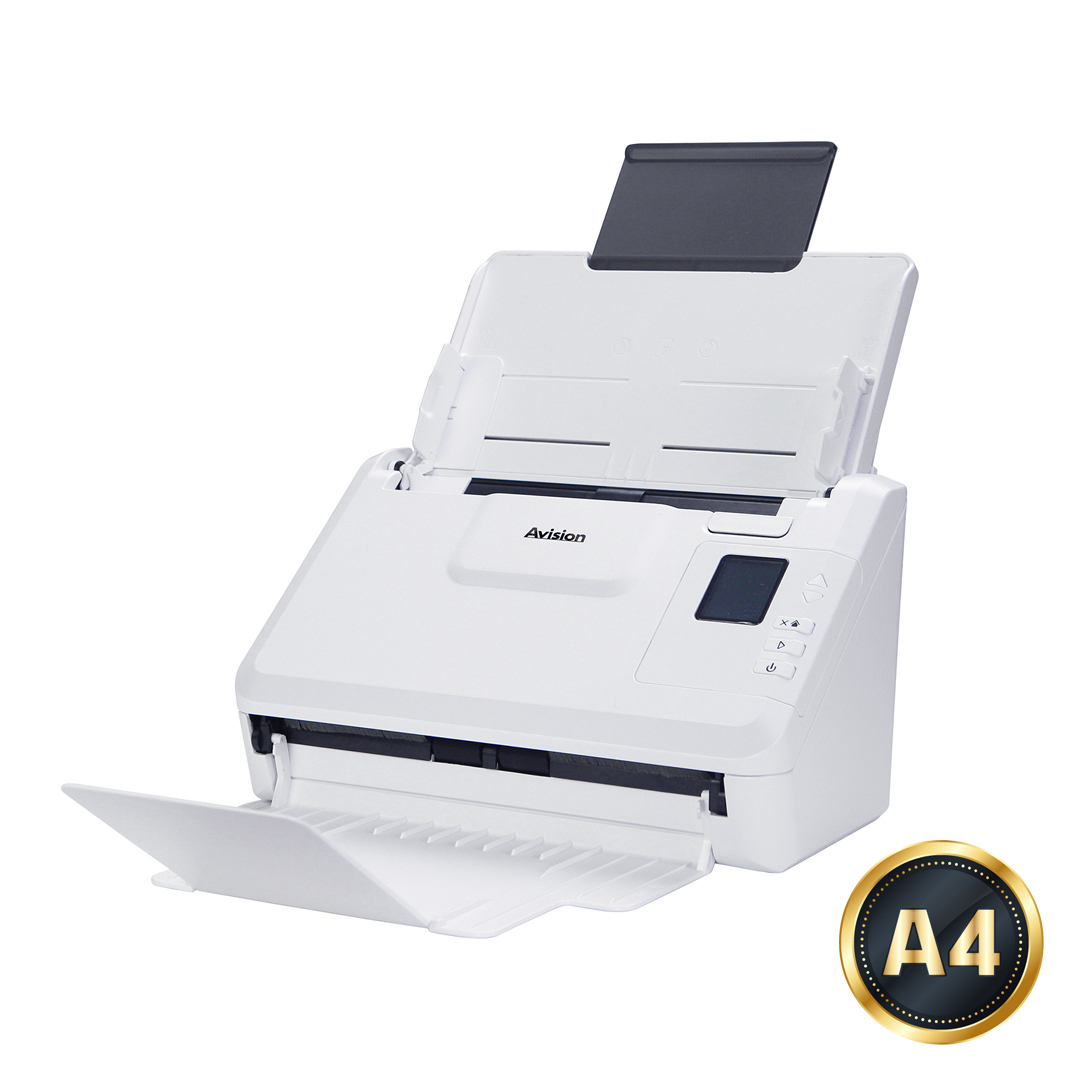

Compact High-Speed ADF Scanner
40 ppm
USB 3.2
600 dpi
| General Specification | |
| Technology | CMOS-CIS |
| Light Source | LED |
| Memory Size | 512MB SDRAM |
| Document Feeding Mode | ADF |
| Optical Resolution (dpi) | 600 x 600 dpi |
| Output Resolution (dpi) | 1200 x 1200 dpi |
| File Formats | BMP, PNG, GIF, JPEG, Single-Page PDF, Multi-Page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR (for iScan only), XPS, DOC, XLS, PPT, DOCX, XLSX, PPTX, HTML |
| Halftone Patterns | Dither and Error Diffusion |
| Grayscale Mode | 16-bit input / 8-bit output |
| Color Mode | 48-bit input / 24-bit output |
| Dimensions (WxDxH) |
Maximum: 282 x 457 x 334 mm (11 x 18 x 13.15 in) Minimum: 282 x 152 x 165 mm (11 x 5.98 x 6.49 in) |
| Weight | 2.5 kg |
| Interface | USB 3.2 Gen1x1 |
| Power Consumption |
Operation: < 17W Ready: < 6W Sleep: < 1.9W Off: < 0.2W |
| Acoustical Noise |
Operation: < 52 dB Ready: < 25 dB |
| Recommended Daily Volume | Up to 8,000 pages |
| OS Support | Windows 7/8/10/11, Windows Server 2008R2/2012/2016/2019/2022/2025, Fedora, openSUSE, Debian, Ubuntu, macOS 10.12–14 Sonoma |
| Bundled Software | TWAIN Driver, ISIS Driver, Button Manager, PaperPort, AVScan, WIA Driver, WorldCard Team |
| Features | |
| Ultrasonic Paper Jam Detection | Yes |
| Long Paper Mode |
Up to 200 dpi Color Duplex 240 in. (6096 mm); Up to 300 dpi Color Duplex 218 in. (5540 mm); Up to 600 dpi Color Duplex 59 in. (1500 mm) |
| Card Scan | Embossed card (Thickness 1.25 mm) |
| Scan Size | |
| ADF Minimum | 74 x 52 mm (A8) |
| ADF Maximum | 216 x 356 mm (Legal) (8.5 x 14 in.) |
| ADF Capacity | 50 sheets (80 g/m² or 20 lb.) |
| Paper Weight | 27g ~ 413 g/m² (7 to 110 lb) |
| Scanning Speed | |
| B/W @ 200dpi | Simplex: 40 ppm ; Duplex: 80 ipm |
| B/W @ 300dpi | Simplex: 40 ppm ; Duplex: 80 ipm |
| Color @ 200dpi | Simplex: 40 ppm ; Duplex: 80 ipm |
| Color @ 300dpi | Simplex: 40 ppm ; Duplex: 80 ipm |
