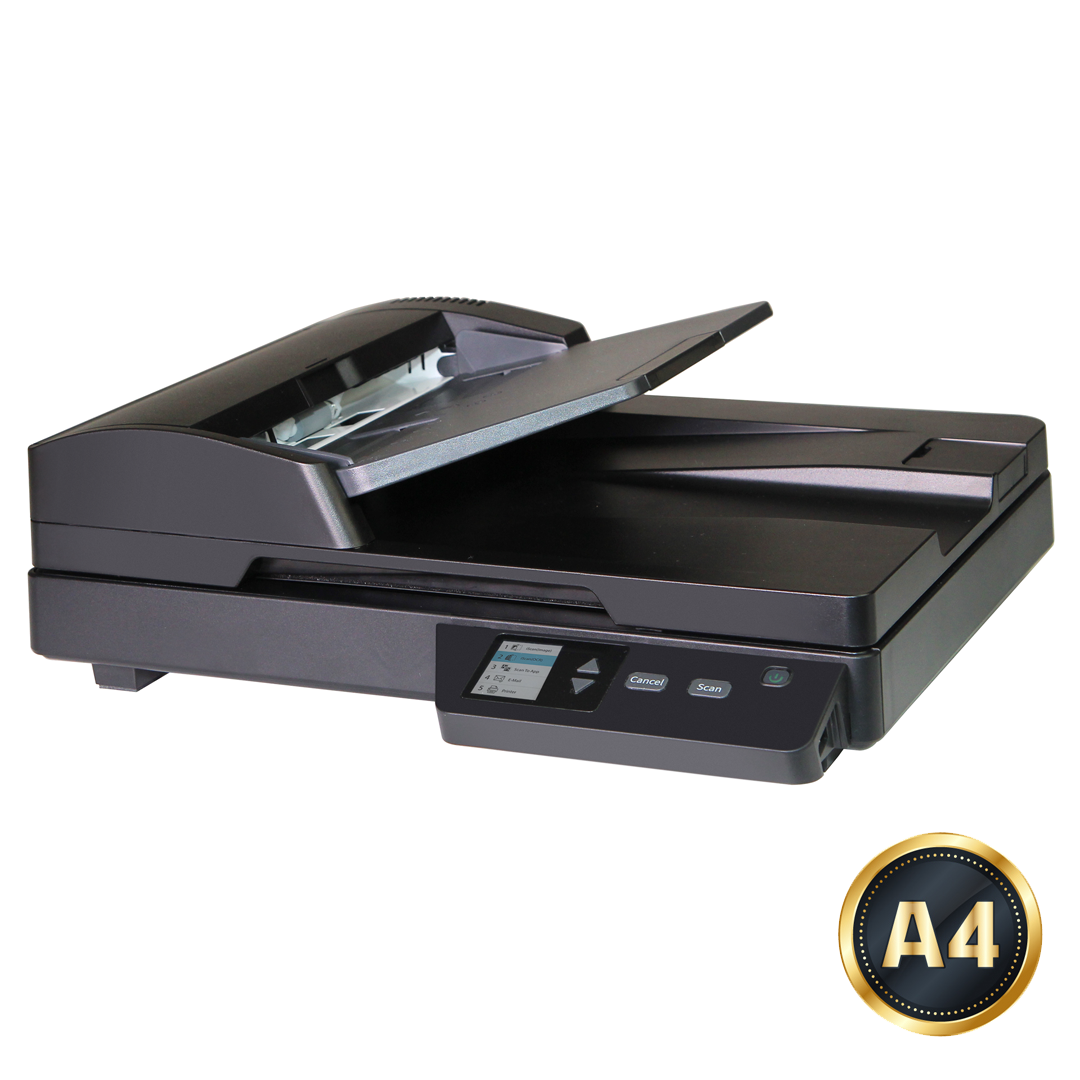

Wireless Flatbed & ADF Scanner — 36ppm Duplex Document Scanner
36 ppm
Wi-Fi
1200 dpi
| General Specification | |
| Technology | CMOS-CIS |
| Light Source | LED |
| Memory Size | 512MB SDRAM |
| Document Feeding Mode | Flatbed and ADF |
| Optical Resolution | Flatbed: 1200 x 1200 dpi, ADF: 600 x 600 dpi |
| Output Resolution | 1200 x 1200 dpi |
| File Formats | |
| Halftone Patterns | Dither and Error Diffusion |
| Grayscale Mode | 16-bit input, 8-bit output |
| Color Mode | 48-bit input, 24-bit output |
| Physical Specifications | |
| Dimensions (W × D × H) | 404.6 x 346 x 127.1 mm (15.8 x 13 x 4.4 in) |
| Weight | 2.96 kg |
| Interface | USB 3.2 Gen1x1, Built-in Fast Ethernet, Wi-Fi |
| Ethernet Port | RJ-45 Ethernet 10/100/1000 Mb |
| Wi-Fi Standard | IEEE 802.11 b/g/n |
| Power Consumption | |
| Acoustical Noise | Operation ≤ 53 dB ; Ready < 45 dB |
| Recommended Daily Volume | Up to 1,000 pages |
| Software & Compatibility | |
| OS Support | |
| Bundled Software | |
| Features | |
| Long Paper Mode |
Up to 200 dpi Color Duplex 240 in. (6096 mm) Up to 300 dpi Color Duplex 218 in. (5540 mm) Up to 600 dpi Color Duplex 59 in. (1500 mm) |
| Scan Size | |
| ADF Minimum | 76.2 x 148 mm (3 x 5.83 in.) |
| ADF Maximum | 216 x 356 mm (Legal) (8.5 x 14 in.) |
| ADF Capacity | 75 sheets (80 g/m² or 20 lb. paper) |
| Paper Weight | 60 ~ 105 g/m² (16 to 28 lb) |
| Scanning Speed | |
| B/W @ 200dpi, A4 | Flatbed: 4.5 sec, Simplex: 36 ppm, Duplex: 72 ipm |
| B/W @ 300dpi, A4 | Flatbed: 4.5 sec, Simplex: 36 ppm, Duplex: 72 ipm |
| Color @ 200dpi, A4 | Flatbed: 4.5 sec, Simplex: 36 ppm, Duplex: 72 ipm |
| Color @ 300dpi, A4 | Flatbed: 4.5 sec, Simplex: 36 ppm, Duplex: 72 ipm |
