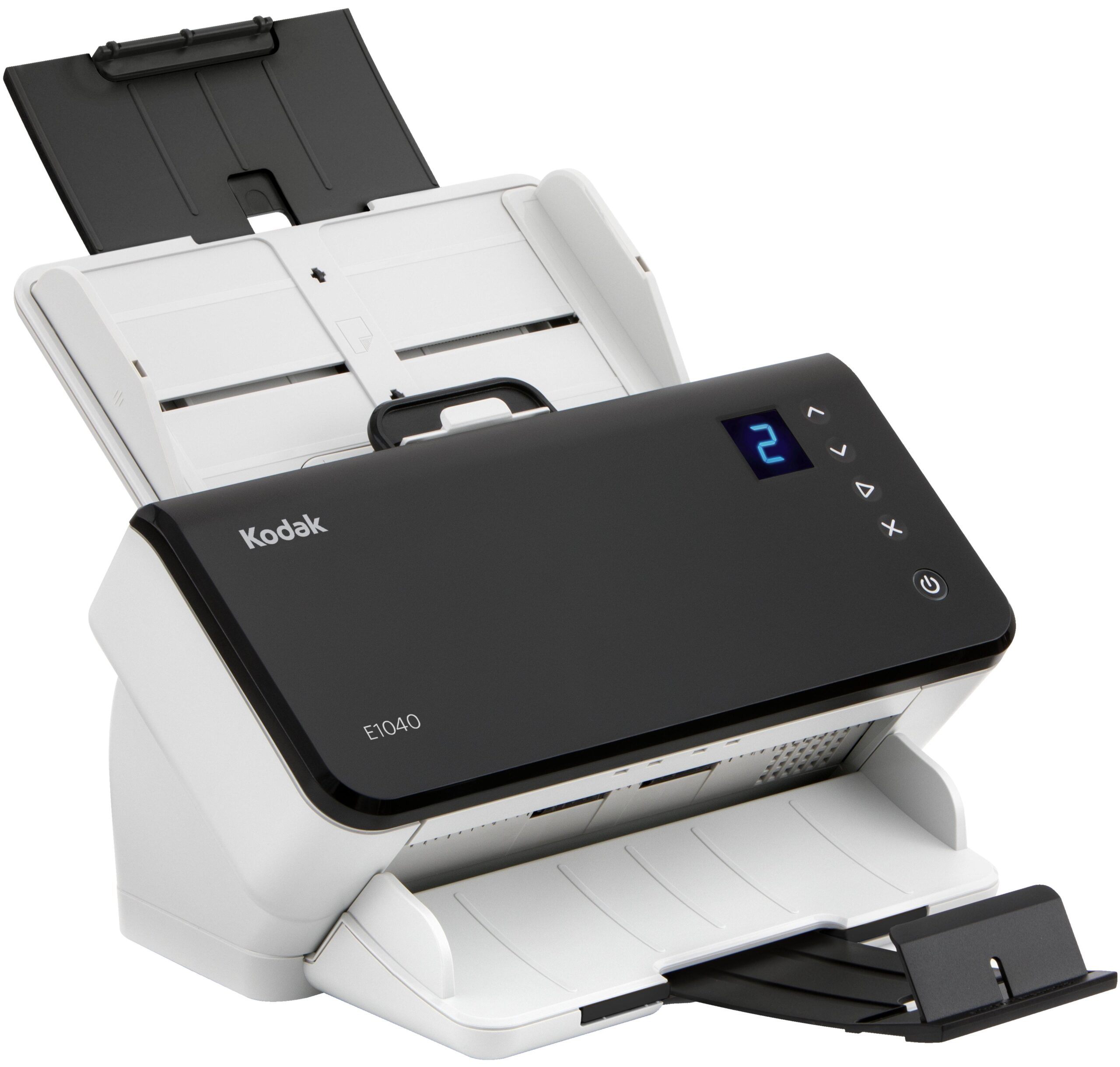

E1040 Scanner

KODAK E1040 Scanner — Specifications

40 ppm
USB 3.2
600 dpi

Product Highlights
Overview	The KODAK E1040 Scanner provides fast, accurate, and reliable results that help streamline your information capture and processing workflows so that your business can achieve more in less time.
Performance
Throughput Speeds	40 ppm / 80 ipm
Recommended Daily Volume	Up to 5,000 pages per day
Feeder Capacity	Up to 80 sheets of 80 g/m² (20 lb.) paper
Document Handling
Maximum Document Size	216 mm × 3000 mm (8.5 in. × 118 in.)
Minimum Document Size	52 mm × 52 mm (2.05 in. × 2.05 in.)
Paper Thickness & Weight	27–433 g/m² (7.2–160 lb.) paper Hard card thickness up to 1.25 mm (0.05 in.)
Paper Handling Features	Length Multifeed Detection Ultrasonic Multifeed Technology
Image Quality
Maximum Optical Resolution	600 dpi
Image Output Resolution	Up to 1200 dpi
Scanning Technology	Dual RGB LED Illumination CIS (CMOS); Grayscale output bit depth is 256 levels (8-bit); color output bit depth is 24 bits (8 × 3); color capture bit depth is 24 bits (8 × 3)
Connectivity
Connectivity	USB 3.2 Gen 1×1 Compatible
Operator Control Panel	1.5 inch (38 mm) 7 segment LED
Software
Bundled Software	Capture Pro Limited Edition Smart Touch
Optional Software	Info Input Solution
Standard Software & Drivers	Citrix certified ISIS Drivers LINUX (TWAIN and SANE) Drivers TWAIN Drivers WIA Drivers
File Format Outputs
Supported Formats	BMP JPEG Microsoft Excel Microsoft Word Multipage TIFF PDF PNG RTF Single-page TIFF Text searchable PDF
Barcode Reading
Supported Barcodes	Codabar Code 128 Code 3 of 9 EAN-13 EAN-8 Interleaved 2 of 5 PDF417 QR UPC-A UPC-E
Security
Data Security	This scanner processes scanned data exclusively through volatile memory ensuring image data is effectively erased upon shut down.
Physical
Dimensions & Weight	Weight: 3.3 kg (7.2 lbs.) Depth: 204 mm (8.0 in.) Width: 312 mm (12.3 in.) Height: 182.5 mm (7.2 in.) Depth with Input Tray: 269 mm (10.6 in.) Height with Input Tray: 231.6 mm (9.1 in.)
Power & Environment
Electrical Requirements	100-240 V (International); 50-60 Hz
Power Consumption	Running: less than 20 watts Standby: less than 0.3 watts
Operating Temperature & Humidity	Operating Humidity: 15% – 80% RH Operating Temperature: 15-35°C (59-95°F)
Environmental Certifications	2008 EuP ENERGY STAR Qualified EPEAT Gold
Approvals & Certifications
Certifications	Argentina (S mark) Australia/New Zealand (RCM) Canada (cTUVus & ICES-003) China (CCC) European Union (CE) European Union (GS Mark) India (BIS) Japan (VCCI) Mexico (NOM) South Korea (KC) Taiwan (BSMI) UK US (cTUVus & FCC)
Operating System Compatibility
Supported Operating Systems	Debian 10.8 Pardus 19.5 SUSE Linux Enterprise Desktop 15 SP5 Ubuntu 18.04 64-bit Ubuntu 20.04 64-bit Ubuntu 22.04 64-bit Ubuntu 24.04 64-bit Windows 10 (32 & 64-bit) Windows 11 (64-bit) Windows Server 2019 Windows Server 2022 Intel / AMD x86/x64 processors only SUSE Linux Enterprise Desktop 15 SP7
Accessories & Consumables
Accessories	Feeder Consumables Kits Integrated A4/Legal Flatbed Passport Flatbed Accessory Stacking Deflector Accessory
Perfect Page Image Enhancement
Enhancement Features	Adaptive threshold processing Add or remove border Aggressive cropping Auto white balance Autocrop Automatic Brightness/Contrast Automatic color balance Automatic color detection Automatic orientation Background color smoothing Barcode reading Brightness and contrast adjustment Content-based blank page removal Deskew Dual stream scanning Electronic color dropout Enhanced color adjustment Enhanced color management Fixed cropping Fixed thresholding Halftone removal Image edge fill Image hole fill Image merge iThresholding Lone Pixel Noise Removal Long document scanning Majority rule noise removal Multicolor dropout Orthogonal rotation Output Compression CCITT Group IV Sharpening Streak filtering
