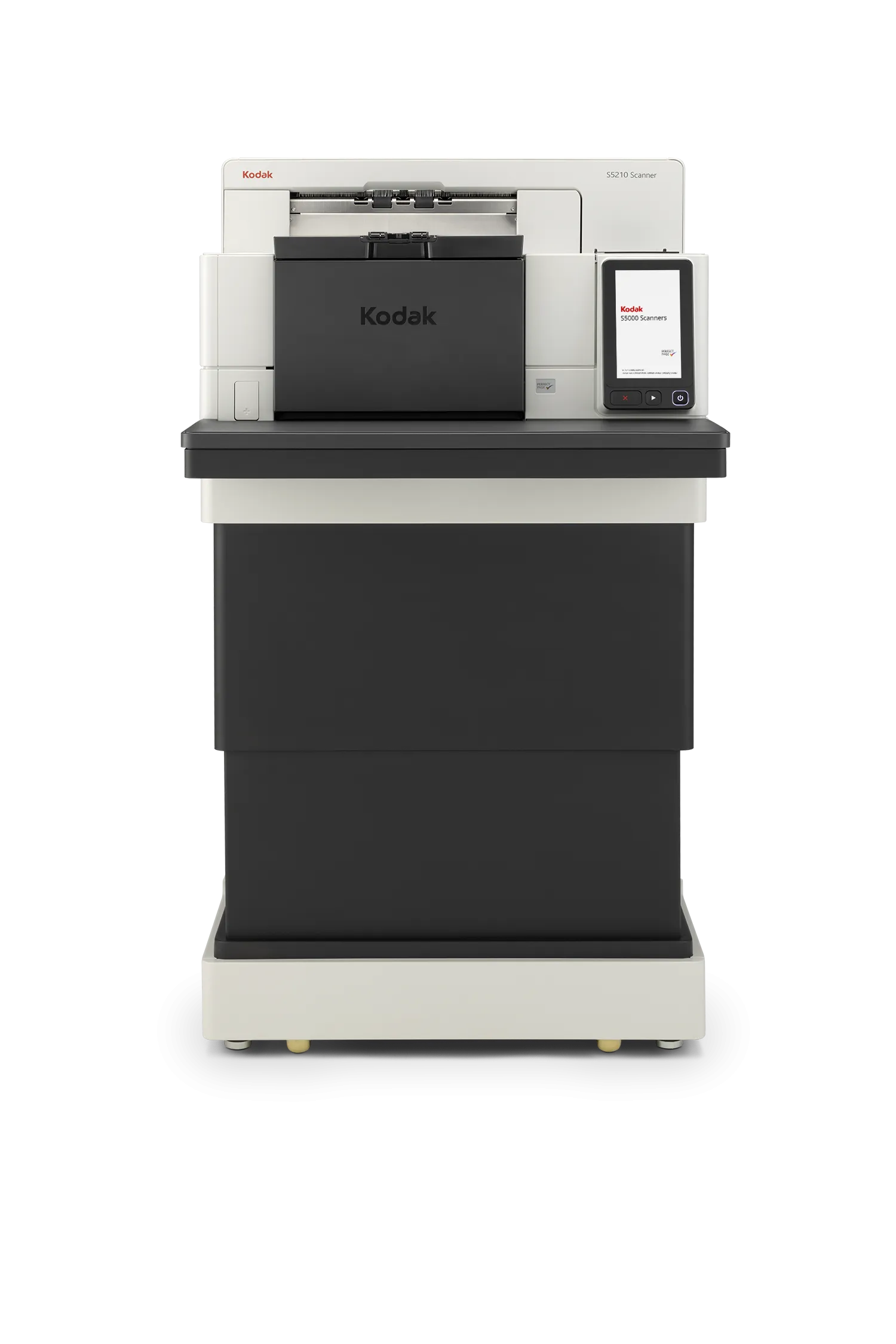

High-Speed Production Document Scanner — 210ppm Ultra Performance Model
210 ppm
USB 3.2
600 dpi
| Product Highlights | |
| Overview | Ultra-high-speed production document scanner designed for enterprise environments requiring continuous, heavy-duty scanning with maximum throughput and reliability. |
| Performance | |
| Throughput Speeds | 210 ppm / 420 ipm |
| Recommended Daily Volume | Unlimited |
| Feeder Capacity | Up to 750 sheets of 80 g/m² (20 lb.) paper |
| Connectivity | |
| Connectivity |
10/100/1000 ETHERNET USB 3.2 Gen 1×1 Compatible |
| Document Handling | |
| Continuous Cropping Mode | This mode allows the user to scan documents of UNLIMITED length |
| Maximum Document Size | 305 mm x 10.16 m (12 in. x 400 in.) |
| Minimum Document Size | 63.5 mm x 63.5 mm (2.5 in. x 2.5 in.) |
| Paper Thickness & Weight | 25–433 g/m² (7–160 lb.) paper |
| Image Quality | |
| Maximum Optical Resolution | 600 dpi |
| Accessories & Consumables | |
| Included Items |
Carrier Sleeves (5 PACK) Feeder Consumables Kits Imaging Guide Set KODAK A3 Size Flatbed Accessory KODAK Enhanced Printer Accessory Manual Feed Shelf Printer Cleaning Pads Printer Ink Cartridge and Carrier Rear Exit Tray Accessory Switchable Background |
| Acoustics | |
| Noise Level |
Off or Ready mode: <39 dB(A) Scanning: <62 dB(A) |
| Compliance | |
| Certifications |
Argentina (S mark) Australia/New Zealand (RCM) Canada (cTUVus & ICES-003) European Union (CE) European Union (GS Mark) Japan (VCCI) Mexico (NOM) US (cTUVus & FCC) United Kingdom (UKCA) |
| Archival Standards | |
| Compliance |
FADGI 2023: Documents (Unbound): General Collections 3-Star FADGI 2023: Documents (Unbound): Modern Textual Records |
| Barcode Reading | |
| Supported Barcodes | Codabar, Code 128, Code 3 of 9, EAN-13, EAN-8, Interleaved 2 of 5, PDF417, QR, UPC-A, UPC-E |
| Data Security | |
| Security | This scanner processes scanned data exclusively through volatile memory ensuring image data is effectively erased upon shut down. |
| Physical | |
| Dimensions & Weight |
Min Height: 106.7 cm / 42 in Max Height: 130.8 cm / 51.5 in Width: 69.3 cm / 27.3 in Depth: 82.3 cm / 32.4 in Weight: 196 kg / 432 lbs |
| Power | |
| Power Consumption |
Low Power Mode: <23.7 watts Running (idle): <100 watts Running: <240 watts Standby: <0.5 watts |
| Electrical Requirements | 100-240 V (International); 50-60 Hz |
| Environment | |
| Operating Conditions |
15% – 80% RH 15-35° C (59-95° F) |
| Software & Compatibility | |
| Operating Systems |
Windows 10 / 11 Windows Server 2019 / 2022 |
| Drivers |
ISIS Drivers TWAIN Drivers WIA Drivers KOFAX Certified |
| Output Formats | |
| File Formats | BMP, JPEG, PDF, PNG, TIFF, Multipage TIFF, RTF, Excel, Word, Text searchable PDF |
| Resolution | Up to 600 dpi |
