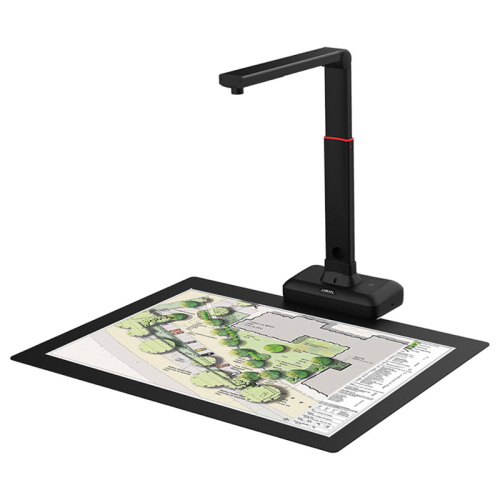

S21

A2 large format overhead document camera

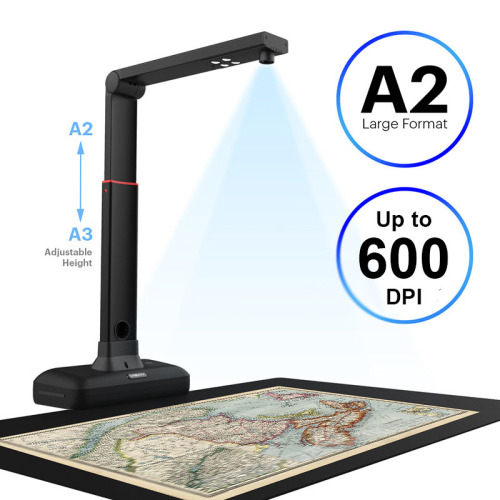

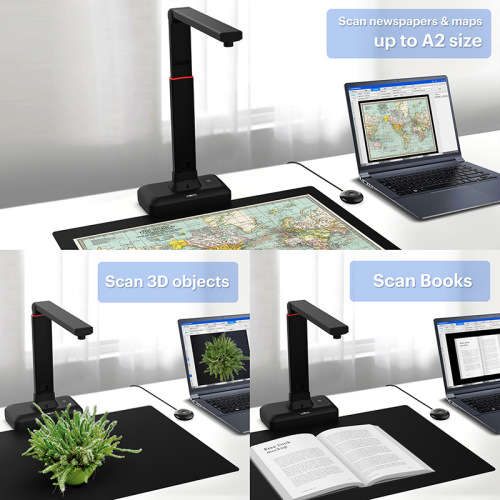

The S21 is a perfect A2 large format overhead document camera, ideal for scanning large format journals, manuscripts, newspapers, and maps. With the built-in 20.1MP high-resolution image sensor, the S21 allows taking snapshots, books, documents, business cards, 3D objects, and record videos. With the embedded OCR feature you can convert all the scanned files into PDF or editable Word/Excel/ePub/Txt files. Along with these great features, you can use the bundled VIISAN scanning software with this smart device to get great results while scanning books. For example, it can automatically digitally flattens curved pages, erases fingers from the scanned photos, repairs the damaged edges of documents, rotates pages based on text orientation, and automatically splits double-page into separate images.

Document Scanner — Specifications

20.1MP
A2 Scan
600 dpi

Image Sensor
Image Sensor 20.1-Megapixel CMOS Sensor
Max. Resolution
Optical: 5104 × 3920 Pixels
Software: 14405 × 10804 Pixels
Max. DPI Output Up to 600 dpi using the exclusive OfficeCam software
Scanning Area
Max. Scan Area 604 mm (W) × 465 mm (H)
Max. Document Thickness Up to 50 mm
Scanning Speed 1 sec. per A2 page
Scanning Methods
Hand Button Control
Button Control (Software)
Foot Pedal Control (Optional)
Color & Focus
Color Bit Depth 24 bit
Lens Focus Fixed
Light Source Built-in LED
Output Formats
Picture Format JPG
Document Formats
PDF (Image)
PDF (Searchable)
PDF (Text)
Excel
WORD
TEXT
E-book Format EPUB
Text To Speech
MP3
WAV (Windows only)
Video Formats
AVI
MP4
FLV
OCR & Language Support
OCR Supported Languages
English
German
French
Italian
Spanish
Portuguese
Dutch
Polish
Russian
Arabic
Chinese
Japanese
Korean
Thai
Vietnamese
130+ Languages
Video Performance
Video Streaming Frame Rate
Video mode: 1920 × 1080 @30fps
Preview: 2048 × 1536 @15fps
Video Compression MJPG
Connectivity
Interface
USB 2.0 Type-B ×1 (PC Connection)
USB 2.0 Type-A ×1 (USB Extension)
Power
Power Supply 5V by USB-Powered
Physical

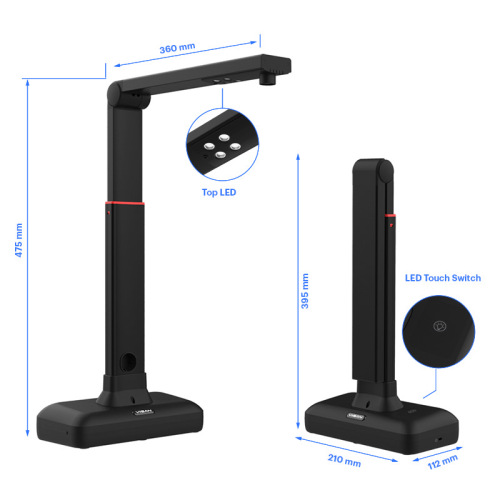

Folded Size 112 (L) × 210 (W) × 395 (H) mm
Working Size (A3) 360 (L) × 210 (W) × 355 (H) mm
Working Size (A2) 360 (L) × 210 (W) × 475 (H) mm
Net Weight Approx. 1kg
Software & Compatibility
Bundled Software
OfficeCam for Windows
OfficeCam for Mac
Supports Apple M1/M2 Macs
System Requirements
Windows 7
Windows 8.1
Windows 10
Windows 11
macOS 10.15 or later
Intel® i5 or higher
8GB RAM or more
USB 2.0 / USB 3.0 compatible
Accessories
Included Accessories
USB Cable ×1
Scanning Pad ×1
Getting Started Guide ×1
Hand Button ×1
