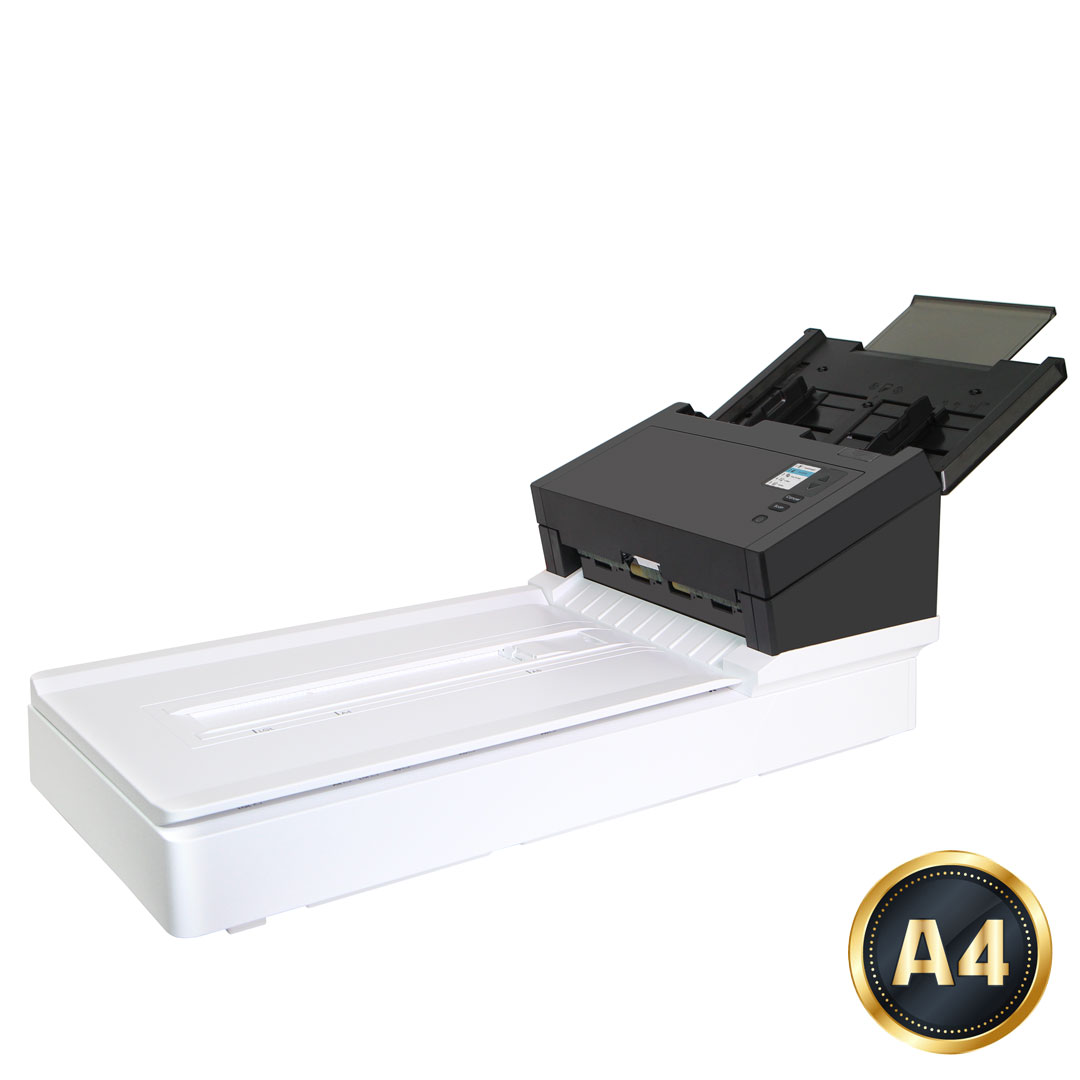

AD3100F

AD3100F

Professional Document Flatbed Scanner
A New Generation of Document Scanner
Enhanced with innovative features, the Avision AD3100F offer high throughput of 100 ppm and 200 ipm in a compact footprint conserving both space and budget. Unlike common sheet-fed scanners which provide only the auto document feeder and can not accommodate irregular sizes and weights of paper, the AD3100F harmoniously combines the benefits of the fast scan rate of the ADF and the convenience of the flatbed unit to meet customer’s diverse requirements.

High-Speed ADF & Flatbed Document Scanner

100 ppm
USB 3.2
1200 dpi

General Specification
Technology	CMOS-CIS
Light Source	LED
Memory Size	512MB SDRAM
Document Feeding Mode	ADF, Flatbed
Optical Resolution	Flatbed: 1200 x 1200 dpi, ADF: 600 x 600 dpi
Output Resolution	1200 x 1200 dpi
File Formats	BMP PNG GIF JPEG Single-Page PDF Multi-Page PDF Multi-TIFF TIFF RTF TXT XPS DOC XLS PPT DOCX XLSX PPTX HTML
Halftone Patterns	Dither and Error Diffusion
Grayscale Mode	16-bit input / 8-bit output
Color Mode	48-bit input / 24-bit output
Dimensions (WxDxH)	809.4 x 323.2 x 330 mm (31.87 x 12.72 x 12.99 in.)
Interface	USB 3.2 Gen1x1
Power Consumption	Operation: < 60W Ready: < 15W Sleep: < 2.9W Off: < 0.3W
Acoustical Noise	Operation: < 63 dB Ready: < 45 dB
Weight	9.1 kg
Recommended Daily Volume	Up to 15,000 pages
OS Support	Windows 7/8/10/11 Windows Server 2008R2/2012/2016/2019/2022/2025 Fedora openSUSE Debian Ubuntu macOS 10.12~10.15 macOS 11 Big Sur macOS 12 Monterey macOS 13 Ventura macOS 14 Sonoma
Bundled Software	TWAIN Driver ISIS Driver Button Manager PaperPort AVScan WIA Driver
Features
Ultrasonic Paper Jam Detection	Yes
Long Paper Mode	Up to 200 dpi Color Duplex 240 in. (6096 mm) Up to 300 dpi Color Duplex 218 in. (5540 mm) Up to 600 dpi Color Duplex 59 in. (1500 mm)
ADF Paper Width	Up to 242 mm (9.5”)
Card Scan	Embossed card (Thickness 1.25 mm)
Scan Size
ADF Minimum	50 x 50 mm
ADF Maximum	216 x 356 mm (Legal) (8.5 x 14 in.)
Flatbed Maximum	216 x 356 mm (Legal) (8.5 x 14 in.)
ADF Capacity	100 sheets (A4: 80 g/m² or 20 lb.)
Paper Weight	27g ~ 413 g/m² (7 to 110 lb.)
Scanning Speed
B/W @ 200dpi, A4	Simplex: 100 ppm ; Duplex: 200 ipm ; Flatbed: 1.5 sec
B/W @ 300dpi, A4	Simplex: 100 ppm ; Duplex: 200 ipm ; Flatbed: 1.5 sec
Color @ 200dpi, A4	Simplex: 100 ppm ; Duplex: 200 ipm ; Flatbed: 1.5 sec
Color @ 300dpi, A4	Flatbed: 1.5 sec ; Simplex: 100 ppm ; Duplex: 200 ipm
