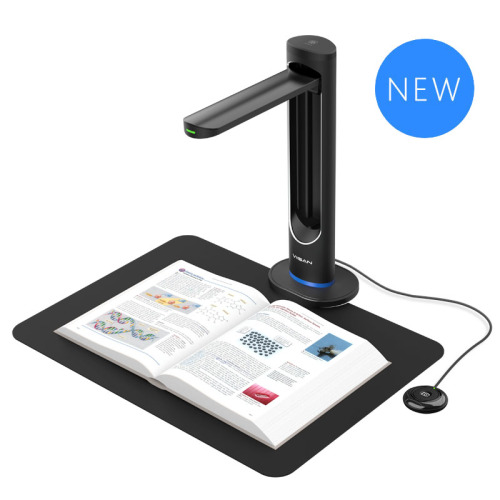

K48

Ultra-High Resolution Overhead Book Scanner

The K48 is an ultra-high-resolution camera scanner equipped with a laser positioning guide and a USB 3.0 connection for use with desktops and laptops. Featuring a 48MP CMOS sensor, it enables detailed scanning of A3 documents and recording of 4K videos at 30fps. With the bundled OfficeCam scanning software, the K48 delivers exceptional results and enhances efficiency when scanning books. Its advanced features include automatically flattening curved pages, erasing fingers from scanned images, repairing damaged document edges, purifying backgrounds, rotating pages based on text orientation, and splitting dual-page spreads into separate image files. Additionally, the embedded OCR feature allows you to convert a batch of scanned images into searchable PDFs or editable Word, Excel, and Text files. It also supports text-to-speech functionality, enabling conversion into MP3 or WAV audio files. The AI reading feature further makes it ideal for language learning and assisting individuals with dyslexia.

Document Scanner — Specifications

48MP
4K
USB 3.0

Image Sensor

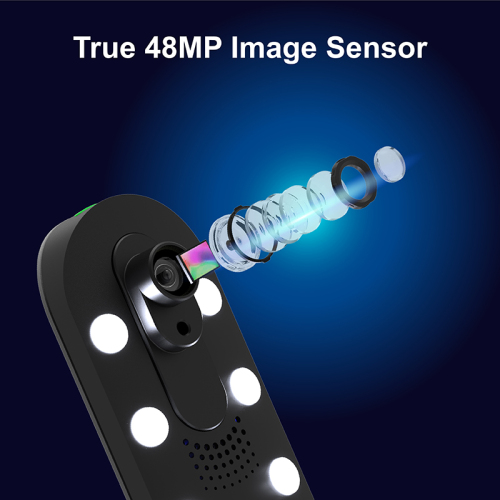

Image Sensor 48-Megapixel SONY CMOS Sensor
Max. Optical Resolution 7968 × 5984 Pixels (48MP)
Output DPI Up to 600 dpi using the exclusive OfficeCam software
Zoom & Focus
Zoom 3X digital zoom by using the software
Lens Focus Fixed focus
Scanning Area & Speed
Max. Shooting Area ≥ A3 (426 × 320 mm)
Color Bit Depth 24 bit
Scan Speed
3 sec/page at 600 dpi
1 sec/page at 310 dpi
Based on Intel 12th i5 with 16GB RAM
Lighting & Indicators
Light Source Built-in High-brightness LED
Status LED
Power On: Solid green
Scanning: Green light flashing
Recording: Red light flashing
Laser Projection Built-in
Scanning Methods
Scanning Methods
Hand Button
Foot Pedal
Software Button
Auto-Scan
Output Formats
Picture Formats
JPG
TIFF
BMP
PNG
Document Formats
PDF (Image)
PDF (Searchable)
PDF (Text)
Excel
WORD
TEXT
MP3
E-book Format EPUB
Video Formats
AVI
MPEG
FLV
WMV
Video Performance
Video Compression MJPG, YUY2
Max. Video Frame Rate 4K, 3840 × 2160 @30fps
Connectivity
Interface
USB 3.0 Type-C ×1 (PC Connection)
USB 3.0 Type-A ×1 (USB Extension)
Kensington Lock (K-lock) ×1
DC-IN ×1
Power
Power Supply DC-IN 5V / 2A
Physical
Folded Size 110 (L) × 150 (W) × 402 (H) mm
Working Size 307 (L) × 150 (W) × 402 (H) mm
Net Weight Approx. 1.2kg
Software
Bundled Software
VIISAN OfficeCam for Windows
VIISAN OfficeCam for Mac
System Requirements
Hardware Requirements
Intel® i5 Processor or higher
Minimum 8GB RAM
16GB / 32GB RAM recommended

Brand

Document Imaging Solutions

Vision Book Scanners

⬇ Download Brochure
